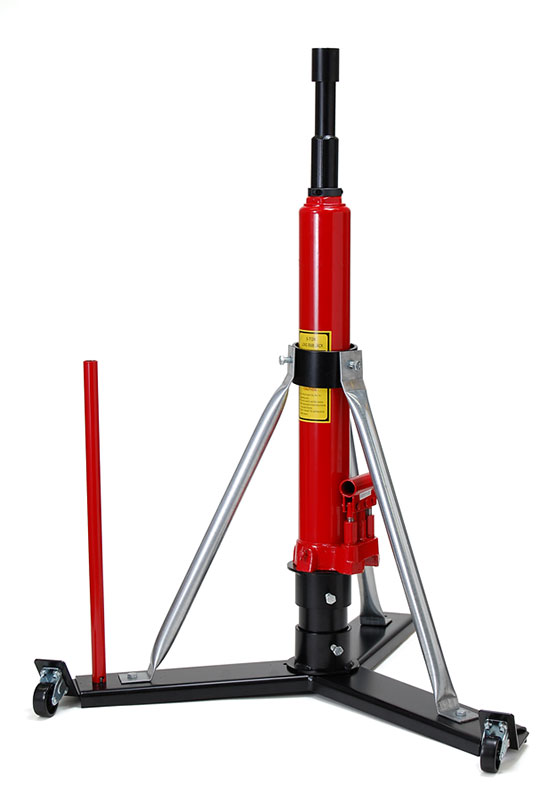

UNIVERSAL AIRCRAFT JACK (MODEL 838W)

SKU: AAJ-838W

Category: Aircraft Jacks

Product Features

  • Height range: 26" to 43", or 32" to 49", and 38" to 55".
  • Load Capacity: 8 tons (16,000lbs)
  • Double action hydraulic cylinder.
  • Locking safety collar secures load.
  • Rugged heavy gauge steel construction.
  • Stable three leg design clears gear doors.
  • Tilt-n-Go wheels makes it easy to move around shop.
  • Convenient handle storage
  • Can ship via UPS to any destination
Price:$833.95

When you need a versatile jack that can accommodate the needs of a busy FBO, the Alpha Aviation Model 838W Universal Jack is the choice. It provides the strength and stability needed to support larger aircraft, while maintaining the low profile needed to get under smaller low-wing aircrafts. It's a design unique to the Universal Jack series that allows it to easily convert from a 26" low wing jack to a 32" (or 38") standard jack, thus avoiding the high cost of having to purchase a set of model-specific jack. And the 8 ton capacity makes it suitable for lifting just about any General Aviation aircraft with a gross weight of up to 16 tons. The Universal Jacks now come with "Tilt-n-Go" wheels for easy movement.

Specifications:

For over 12 years, family owned and operated Alpha Aviation has been making high quality aircraft jacks with the kind of craftsmanship and attention to detail that you just don't see in mass-market types. Each jack is hand fabricated, assembled, and thoroughly inspected to ensure that you will consistently receive the finest aircraft jack for your money. And with over 4,000 units in service since 1995, Alpha Aviation Aviation Jacks are field-proven to provide safe, rock-steady support for your airplane.

Find your jack: There are 5 models to cover just about every light aircraft. Locate your airplane in the chart below and select the appropriate jacks. Or if it's not listed, measure the height from the ground to your airplane's jack point and select jacks that are shorter, but with enough range and load capacity to safely lift your airplane.

AIRCRAFT
BUILDER
AIRCRAFT MODELSJACK MODEL*
(*Any of the indicated models will work)
#REQTAIL
STAND
AERO
COMMANDER
Commander 112/114/115AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W3No
BEECH
AIRCRAFT
BaronAAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
DukeAAJ-324W3No
Bonanza BE33/35/36AAJ-324W, AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Debonair BE333AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Duchess BE76AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Musketeer BE23AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Sierra BE23AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Sundowner BE23AAJ-326W, AAJ-332W2Yes
Travel Air BE95AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
BELLANCAAll Low Wing, including SUPER VIKINGAAJ-324W2Yes
CESSNACessna 172/177/182/210AAJ-868HLW, AAJ-868W2Yes
Cessna 310/320AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W3-4No
Cessna 337 SkymasterAAJ-868HLW, AAJ-868W2Yes
Cessna 340/400 seriesAAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W3-4No
GRUMMANCheetah, TigerAAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
MOONEYOvation, AcclaimAAJ-324W, AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
PIPERApache PA23AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Arrow PA28RAAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Aztec PA23AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Brave PA25AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Cherokee PA28/PA32AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Comanche PA24AAJ-324W, AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Lance PA32AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Saratoga PA32AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Seminole PA44AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Seneca 1/11/111AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
Twin Comanche PA30/39AAJ-324W, AAJ-326W, AAJ-332W, AAJ-838HLW, AAJ-838W, AAJ-868HLW, AAJ-868W2Yes
66 lbs (30Kg) shipping weight.

You might also be interested in...

May we recommend the following accessories to get the most from your selected product? Include any of these items with your purchase by entering the desired quantity before clicking any of the Add To Cart buttons.

TAILWEIGHT (MODEL 375)

SKU: AAJ-375

TAILWEIGHT (MODEL 375) (AAJ-375)
Alpha Aviation's unique tail weight design allows the secure anchoring of compression or torsion loads without the need for numerous sandbags and anchor chains.
Price:$624.95
