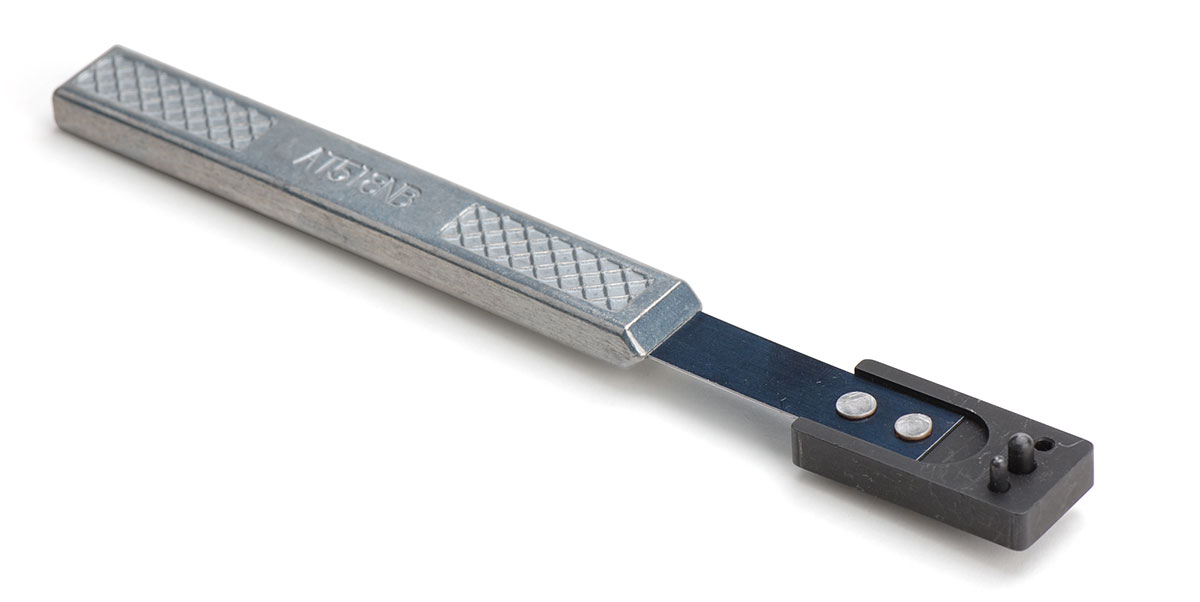

PLATE NUT DRILL JIG, #6 DOUBLE-WING MINIATURE (DWM)

PLATE NUT DRILL JIG, #6 DOUBLE-WING MINIATURE (DWM) (518NB)

SKU: 518NB

Category: Drilling Aids

Sale:$41.25
List Price:  $45.95
Save  $4.70  (10%)
Used to install #6 miniature two lug double-wing style plate nuts (DWS).

DOUBLE WING MINIATURE PLATE NUT DRILL JIGS (DWM)

nutplate jig
PART NUMBERSCREW SIZESPACING (A)SPACING (B)PILOT DIA. (C)DRILL SIZE (D)
518NB#60.2180.4360.139#40
518NC#80.2340.4680.164#40
518ND#100.2500.5000.191#40
518NE1/4"0.2810.5620.248#40
1 lbs (0.5Kg) shipping weight.
